Assemble Elegoo Smart Car Arduino Robot KIT 3.0 Step 7: Assemble and Install the Ultrasonic Ranger

Few months ago, the great folks at Elegoo sent me one of their great Arduino Robot Kit Version 1.0.
I already posted Assembly Instructions, and some tutorials on programming it.
Couple of month later, they introduced improved Smart Car Arduino Robot KIT Version 2.0 , and also sent me one :-). I posted Assembly Instructions for it too :-). I also mapped the Shield in Visuino , and started work on tutorials.
Elegoo did not stop there however, and few weeks ago I received the Latest Version 3 Arduino Robot Kit donated for the Visuino development!

I already posted:

Unboxing video
Step 1: Installing the Motors on the Chassis
Step 2: Installing and Connecting The Motor Driver Board
Step 3: Installing The Line Tracking Sensor Board on the Chassis
Step 4: Installing The Arduino and Sensor Shield Boards on the Chassis
Step 5: Installing The Battery Box on the Chassis
Step 6: Installing the Servo turning the Ultrasonic Ranger

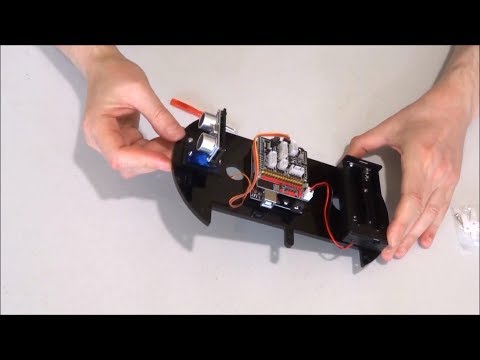

Here is the 7th Assembly Video - Assembling and Installing the Obstacle Avoidance Ultrasonic Ranger:

I am preparing the rest of the Assembly videos and will post them in the following days. I have also started mapping the Robot's Shield functionality in Visuino, and hope to have improved support in few days.
After that I will try to make some Visuino tutorials for the Robot.


#Visuino #Arduino #Elegoo #Robot
