Assemble Kuman Smart Car Arduino Robot KIT SM11 Step 10: Charge and Install The Batteries

Few months ago, I received a Cool Arduino Robot Car SM11 KIT from the great folks at Kuman generously donated for the Visuino development :-).
Due to some health problems, and heavy work on the Visuino , the Mitov Software Libraries and couple of other robots, I was not able to post new videos for it, but finally I have found a gap and recorded some more.

I already posted:
Unboxing video
Step 1: Installing the Motors and Attaching the Wheels
Step 2: Installing The Boards And Sensors
Step 3: Assemble the Ultrasonic Ranger mount, and install the Ultrasonic Ranger on it
Step 4: Installing the Servo, the Ultrasonic Ranger, and the Battery Box
Step 5: Connecting the Motor Driver Board and the Battery Box Cables
Step 6: Connecting the Sensors, Servo, Buzzer, Button, and Turn Signal LEDs to the Sensor Shield on top of the Arduino UNO
Step 7: Installing The LED Lights and Turn Signals
Step 8: Installing The Infrared Remote Receiver
Step 9: Installing The HC-06 Bluetooth Module

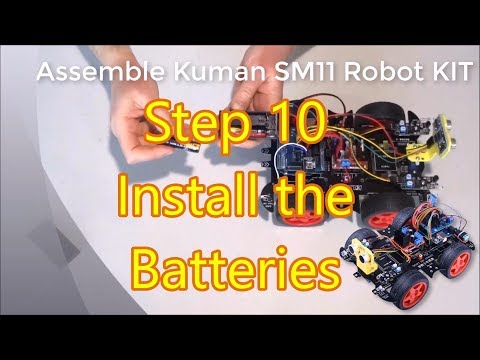

And here is, after a long delay, the 10th assembly video - Charge and Install The Batteries:




I am preparing the rest of the Assembly videos and will post them in the following days.
I am also looking into what is the best way to map the Robot functionality in Visuino .
After that I will try to make some Visuino tutorials for the Robot.

Cheers,
  Boian
